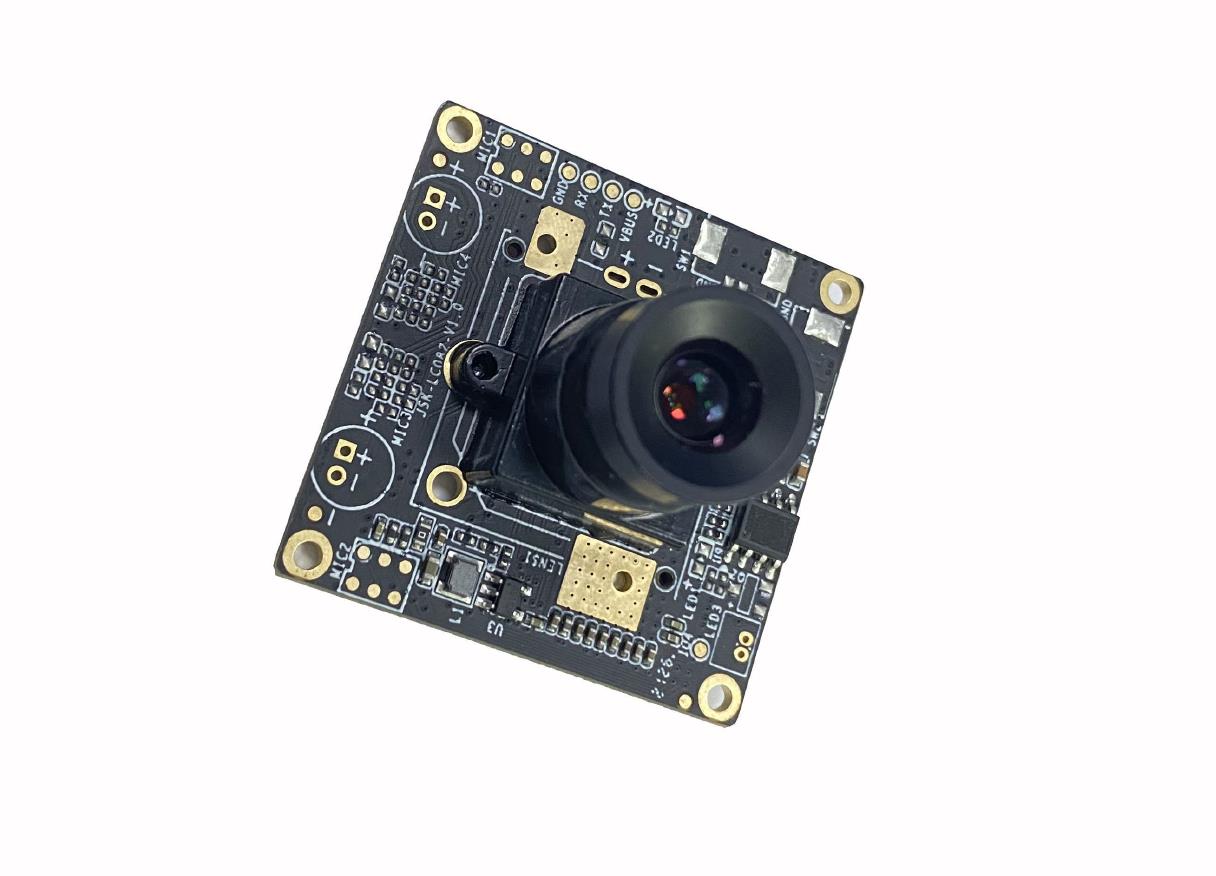

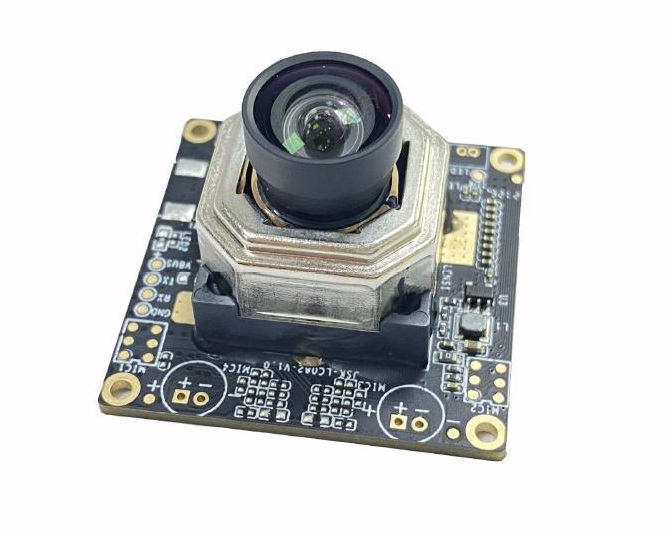

12MP Sony IMX377 camera 30fps autofocus USB module 1 / 2.0 COMS sensor camera

JSK-LC082-V1.0-AF 12MP Sony IMX377 camera 30fps autofocus USB module 1 / 2.0 COMS sensor camera compliance with USB specifications • USB 2 and 1.1 compliance • USB video v1 1 compliance (UVC) • USB high speed, full speed automatic switching • support 12 megapixel, 4K, 2K, 1080p, 720p, VGA, QVGA, CIF, QVGA
click to consult
Product Specification

Description

JSK-LC082-V1.0-AF

Optical size 1 / 2.0 " Inch COMS sensor
Sensor resolution 4056 (H) x 3046 (V)
Unit pixel size 1.55um x 1.55um
colour filter RGB Bayer pattem
Shutter type Electronic rolling shutter
Maximum frame rate 30fps @ 3840*2880
angle of view 56°
aperture 2.4
AEC / Gain / White balance Auto
Interface USB 2.0 & USB1.1
power DC 5V Sergeant 5%
Dimensions (mm) (L) 38mm x 38rnm x 29.3 Sergeant 0.2mm
working temperature -10℃ — +60°C
Operating system requirements Windows XP , Windows Vista , Windows 7,android.
Focal length 100 cm or optional self debugging.
