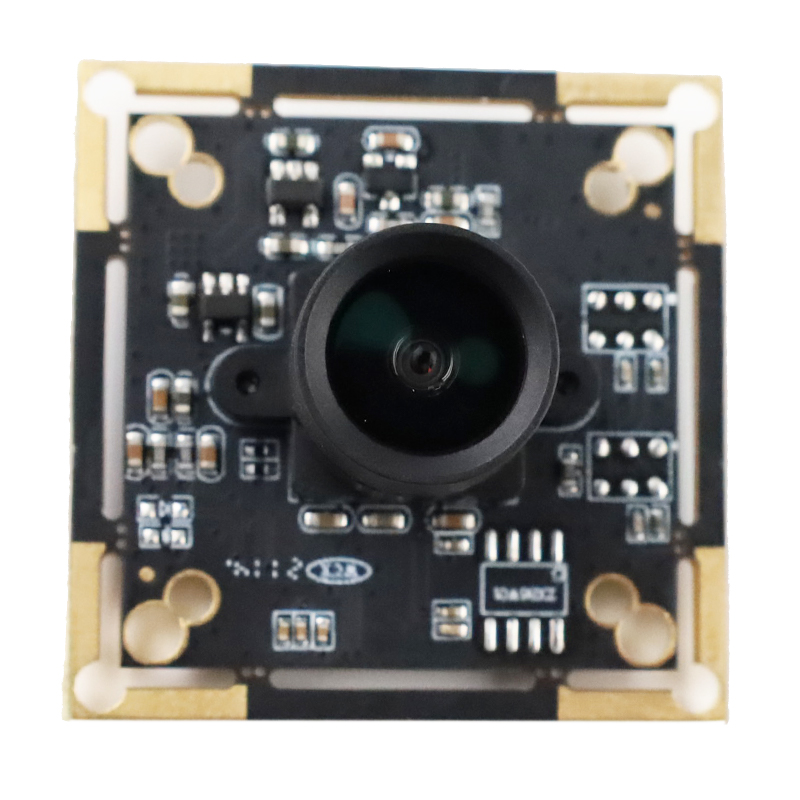

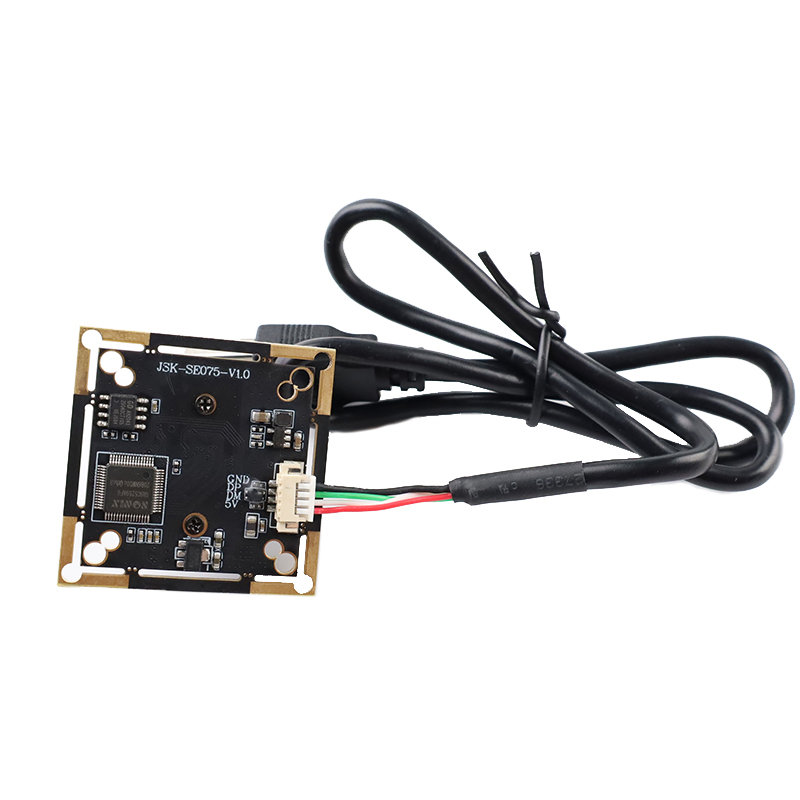

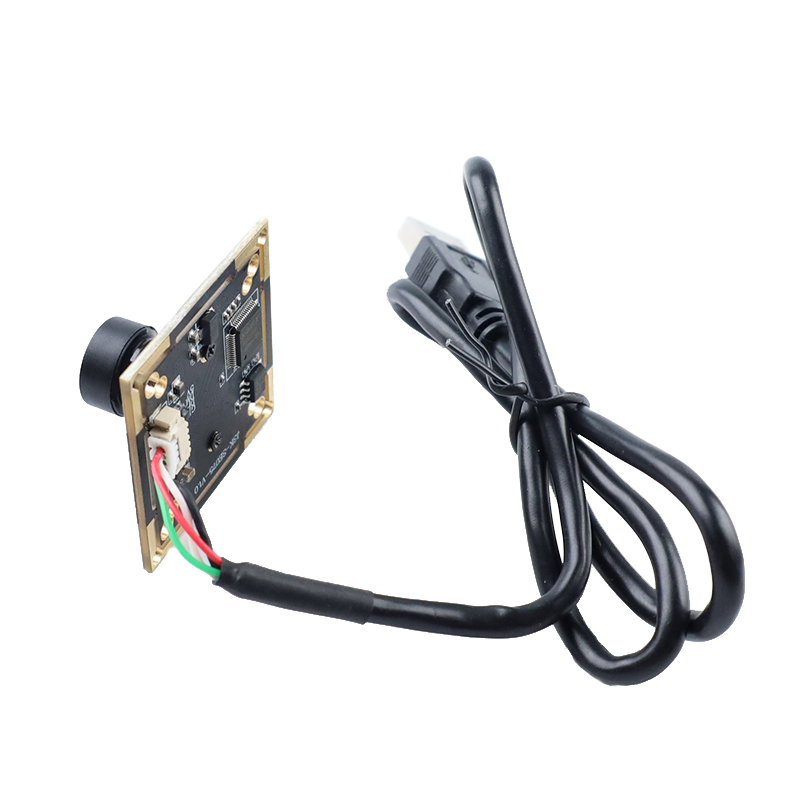

8mp HD module 15fps@3864 *2218 1 / 3.2 "inch COMS sensor camera

JSK-SE075-V1.0 ( 8M) B01 8mp HD module 15fps@3864 *2218 1 / 3.2 "inch COMS sensor camera High quality color photo imaging at 4K resolution and video capability can now be easily embedded into the next generation of products with low power consumption and low noise requirements with the new module.
click to consult
Product Specification

Description

JSK-SE075-V1.0 ( 8M) B01

Optical size 1/3.2”inch COMS sensor

Sensor resolution 3864 (H) x 2218(V)
Unit pixel size 1.4um
colour filter RGB Bayer pattem
Shutter type Electronic rolling shutter
Maximum frame rate 15fps@3864*2218
angle of view Diagonal 86 ° horizontal 73 ° vertical 59 °
aperture 2.7
AEC / Gain / White balance Auto
focusing distance Fixed 50-150cm
Interface USB 2.0
Power DC 5V
Size (mm) 38mm x 38mm x 18/-0.3mm
working temperature -10℃ — +60°C
Operating system requirements Windows XP, Windows Vista, Windows 7,android.
Lens EFL 2.88
power dissipation
Standby 30mA 士5mA

operate 130mA 士5mA @ 1920x1080 /30fps
