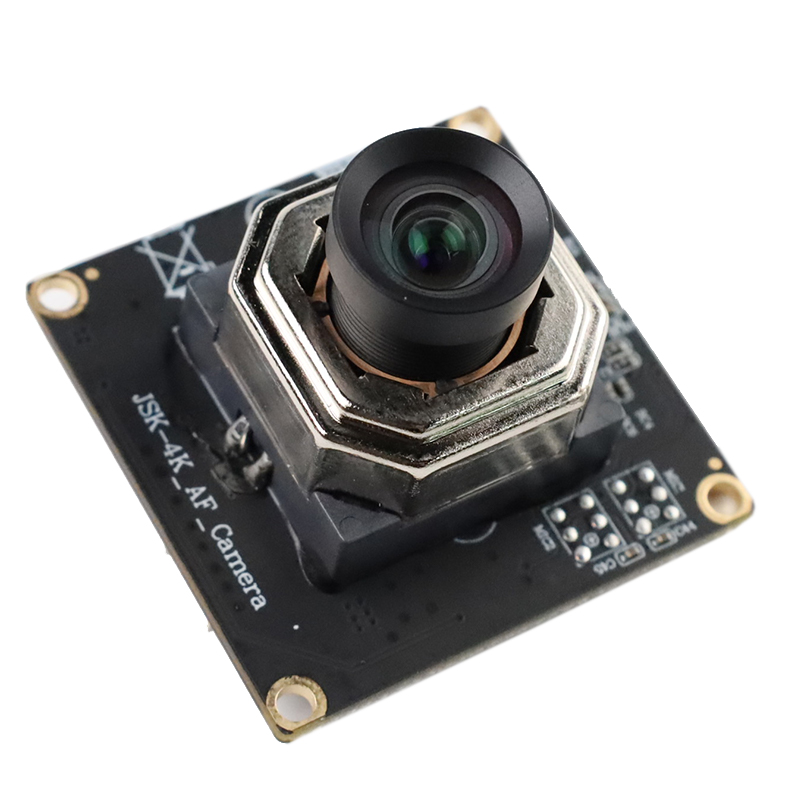

4K HD IMX415 sensor auto focus 8MP usb camera module

JSK-4K_AF_Camera A03_USB video conference module 4K picture autofocus camera module_Camera Module 8mp IMX415 sensor Fisheye,This camera module is developed by our company for video conference camera module, which is widely used in enterprise video conference, remote teaching, telemedicine, remote training, remote recruitment, remote cooperation and other conference occasions. It adopts 3864 (H) x 2218 (V) resolution, supports 1080p, 720p, etc., and the HD resolution image is more realistic and natural.
click to consult
Product Specification

Description

JSK-4K_AF_Camera A03

Optical size 1 / 2.5 "inch COMS sensor
Sensor resolution 3864 (H) x 2218 (V)
Unit pixel size 1.62um x 1.62um
Color filter RGB Bayer pattem
Shutter type electronic rolling shutter
full resolution 30fps@4K
Viewing angle 69 ° aperture 2.3
AEC / gain / White Balance Auto
USB 2.0 & usb1 one
Power DC 5V ± 5%
Dimensions (mm) (L) 38mm x 38rnm x 24.7 ± 0.2mm
Operating temperature: - 10 ℃ - + 60 ° C
Operating system requirements: Windows XP, Windows Vista, windows7, Android
Focal length 6 power consumption standby 30mA ± 5mA
Operation 420mA 5mA@1920x1080 /30fps
1 high temperature (high temperature storage test) 65 ° C ± 2 ° C, 72 hrs
2 low temperature (low temperature storage test) - 20 ° C ± 2 ° C, 72 hrs
3htht (high temperature and high humidity storage test) 60 ° C ± 2 ° C, 90% RH, 120hrs
4tct (temperature cycling test) - 10 ° C ± 3 ° C (30min) ~ 65 ° C ± 3 ° C (30min), 100cycle
5 vibration test sinusoidal vibration, frequency 10 ‐ 2000Hz
Maximum acceleration: 1.5mm, 2G x, y, Z time: 20min / each (45hrs)
6 drop test: free fall at the height of 150cm, surface: concrete or steel, drop times: 3
